The Pittsburgh Digital LaunchPad™ is a host board that accepts a Business Card DSP™ plugged into the top, providing it with a complete audio and MIDI interface, thereby creating an instant prototype for your newest products.

In conjunction with Pittsburgh Digital’s engineering team, the LaunchPad™ lets you quickly refine your prototype into a finished product. Programmable user controls are provided for you, enabling the LaunchPad™ to mimic your product’s exterior interface, so you can actually use your product while your mechanical design is still under development.

• Two 20-pin headers to accept a Business Card DSP™

• Four custom-programmable push buttons

• Four custom-programmable potentiometers

• Five custom-programmable LEDs

• Dual seven-segment LED display, custom-programmable

• Stereo ¼” inputs: right and left

• Microphone input: combination XLR / TRS jack

• Guitar input: mono ¼”

• Stereo ¼” line outputs: right and left

• Stereo headphone output

• MIDI IN

• MIDI OUT/THRU

• 9 VDC power jack, with alternate battery solder terminals

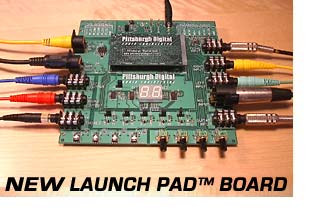

BUSINESS CARD DSP™INTERFACES WITH THE LAUNCH PAD™ BOARD

Contact us for more information and pricing.



Business Card DSP™ and LaunchPad™ are trademarks of
Pittsburgh Digital LLC

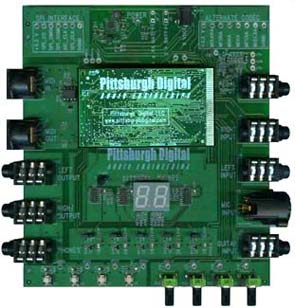

TOP VIEW OF THE LAUNCH PAD™ BOARD
